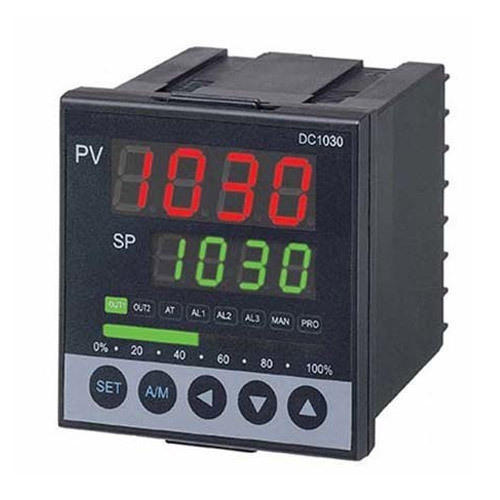

DC1040 Honeywell Digital Controller
3000 INR/Unit
Product Details:
- Input TC (K, J, R, S, B, E, N, T, W, PL II, U, L), RTD (Pt100â¦, JPt100â¦, JPt50â¦) Linear (-10~10mV, 0~10mV, 0~20mV, 0~50mV, 10~50mV)
- Output Relay Output Contact, SPST(DC1010)/SPDT(1020,1030,1040), 3A/240VAC Voltage Output Voltage Pulse, 20VDC/20mA Linear Output 4~20mA, 0~5V, 0~10V, 1~5V, 2~10V Motor Control Output Three Position Step Control (Time proportional motor control)
- Power Supply 230VAC
- Product Type Temperature controller
- Rated Voltage 24-240VAC Volt (V)
- Supply Voltage 24-240VAC Volt (v)
- Size 96*96*96
- Click to View more
X
DC1040 Honeywell Digital Controller Price And Quantity
- 3000.00 - 7000.00 INR/Unit
- 1 Unit
- 3000 INR/Unit
DC1040 Honeywell Digital Controller Product Specifications
- TC (K, J, R, S, B, E, N, T, W, PL II, U, L), RTD (Pt100â¦, JPt100â¦, JPt50â¦) Linear (-10~10mV, 0~10mV, 0~20mV, 0~50mV, 10~50mV)
- PID
- 1 Year
- 24-240VAC Volt (V)
- Relay Output Contact, SPST(DC1010)/SPDT(1020,1030,1040), 3A/240VAC Voltage Output Voltage Pulse, 20VDC/20mA Linear Output 4~20mA, 0~5V, 0~10V, 1~5V, 2~10V Motor Control Output Three Position Step Control (Time proportional motor control)
- 1 Kilograms (kg)
- 96*96*96 Millimeter (mm)
- Black
- 230VAC
- 24-240VAC Volt (v)
- 96*96*96
- Temperature controller
DC1040 Honeywell Digital Controller Trade Information
- 10 Unit Per Day
- 1 Week
- As Per standard
- All India
- All standard certifications
Product Description
Product Details :
| Source Resistance | 1000 Ohm maximum |
| Model | DC1040 |
| Humidity | 20 to 90% RH (non-condensing) |
| Brand | Honeywell |
| Power Consumption | 5W / 7.5 VA maximum |
| Supply Voltage | 100 to 240V AC, 15 to 50V DC |
| Frequency | 50/60 Hz |
| Ambient temperature | 0-50 deg C |
| Exterior | Double insulation, Case and front panel Plastic |
| Indication | 4-digit, 7-segment display |
| Const value storage | Non-volatile memory (EEPROM) |
| Mounting | Panel-mount |
| Exterior Size | 96 x 96 x 97 mm, 3.78x3.78x3.82 inch (W x H x D) |
| Panel Cutout Size | 90.5 x 90.5 mm, 3.56 x 3.56 inch (W x H x D) |
| Global Approvals | CE, cUL |
| Accuracy | +/- 0.2% of span |
Specifications :
- Insulation Resistance: Over 10 under DC500V megger between input terminal and case(ground)
- Over 10 under DC500V megger between output terminal and case(ground)
- Withstand voltage: 1000V AC 50/60Hz for 1min across input terminal and case(ground)
- 1500V AC 50/60Hz for 1min across output terminal and case(ground)
- Vibration Resistance: 10m/s2 (approx. 1G), 10 to 55Hz for 10min each X, Y, Z directions
- 20m/s2 (Approx. 2G), 10 to 55Hz for 2 hours each in X, Y, Z directions
