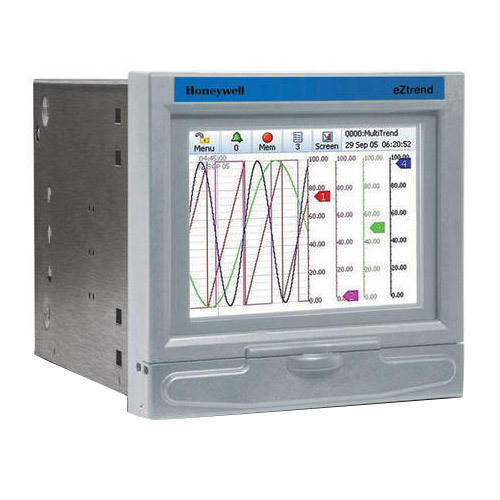

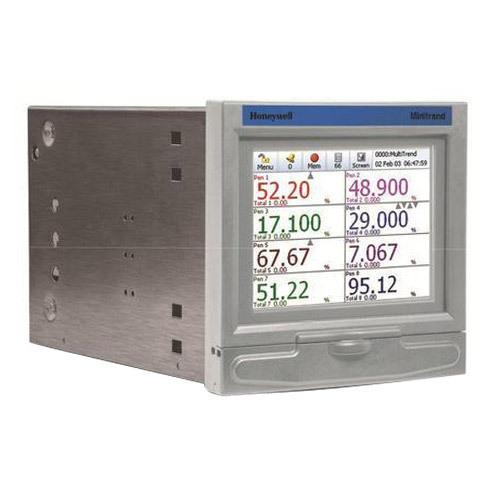

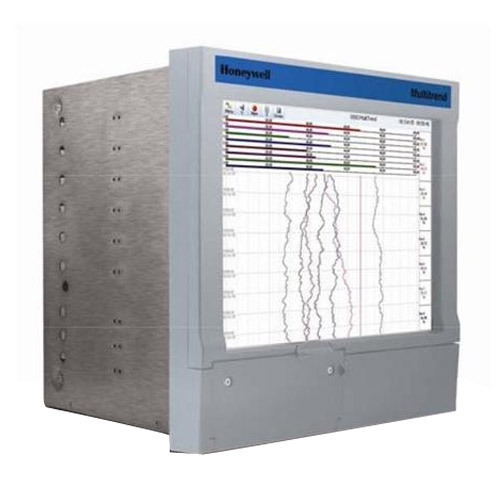

DR Graphic Recorders

Product Description

Product Details :

Slot 2 :

• Four Analog Inputs
• Six Analog Inputs
• Eight Analog Inputs
• Four Pulse Inputs

Slot 3 :

• Six Additional Analog Inputs
• Eight Additional Analog Inputs
• Four Pulse Inputs
• 8 Relay/2 Digital Inputs-6 Fixed Outputs/2 Configurable DI or Relay
• 8 Configurable Digital Inputs/Discrete 24V Relay Outputs
• 16 Configurable Digital Inputs/Discrete 24V Relay Outputs
• Two Analog Outputs
• Four Analog Outputs

Memory Card Expansion:

• 1Gb Internal Memory
• 2Gb Internal Memory
• 4Gb Internal Memory
• 1Gb Internal Memory + 8GB SD Card
• 2Gb Internal Memory + 8GB SD Card
• 4Gb Internal Memory + 8GB SD Card

Security / Firmware Credits :

• Five Credits
• Ten Credits
• Twenty Credits
• Thirty Credits
• Forty Credits
• Fifty Credits
• Sixty Credits
• Seventy Five Credits
• Ninety-Nine Credits

Software :

• Trend Manager Pro (Single User License)
• Trend Server Pro (Single User License)
• Trend Server Pro with OPC capability (Single User License)
• Screen Designer with Trendviewer
• Screen Designer with Trend Manager Pro (Single User License)
• Screen Designer with Trend Server Pro (Single User License)

Credits :

• Decide what functions are needed and select that many total "Credits" when ordering firmware options
• For Example: If Math, Events and Totals are needed for the application, sum the values for each function listed below to
• determine the number of credits to purchase
• Additional credits are available if needed using the Upgrade Procedure
• Credits can be selected/deselected and used interchangeably as long as the total credits purchased are not exceeded
• Maximum number of credits available is 99 credits.
