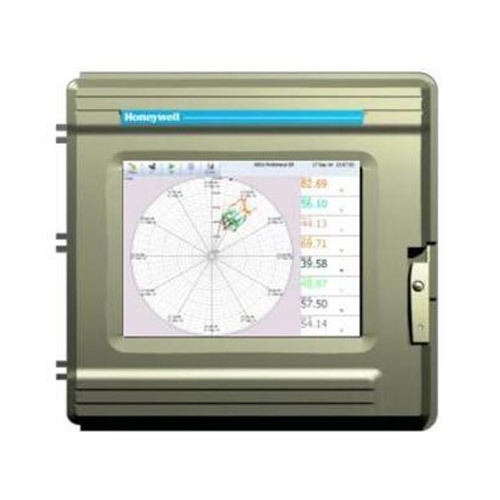

Eztrend Graphic Recorders

Product Description

Product Details :

Crystal Clear Display:

• Clear and intuitive operation
• Industrial rugged Touch Screen with rapid navigation

Comprehensive Connectivity:

• 10/100 Ethernet (DHCP) and E-mail
• FTP and TCP/IP
• Modbus Master and Slave (option)
• Front USB port as standard for keyboard and mouse.
• Optional SD Card slot.

Data Storage:

• On-board non-volatile memory - up to 740MB
• Removable USB storage
• No moving parts - all solid state Flash memory

Security Stringent - Total Data integrity:

• Password Protection - 21CFR Part 11
• ESS - Extended Security System
• Password Network Synchronisation

Recorder Function :

• Honeywell's eZtrend GR recorder provides flexible electronic data acquisition and recording in a DIN standard 144mm format recorder
• Up to 12 Analogue inputs with 256MB standard on-board memory plus additional removable storage media

Display:

• 5.7" Colour Active (TFT) -with more than 256,000 colours makes it easy to interpret process data and take action with the intuitive bar charts, digital values or trends displays.
• A screen saver function can be set from 1 to 720 minutes to extend the life of the backlight
• Touch Screen -the heavy duty durable touch screen provides easy data entry and rapid navigation though the menus
• Help Files - A complete contextual help system can be accessed and visualised on the screen of the recorder.

Communications :

• Ethernet Connectivity -the Ethernet (DHCP standard) connection, with support for various protocols, provides unlimited connectivity to local area networks (LANs)
• The standard Ethernet interface makes networking of the recorder to a LAN or the world wide web fast and convenient
• Dynamic Host Configuration Protocol (DHCP) automatically acquires the settings (IP address) for network communications from a DHCP server
• Simple Network Time Protocol (SNTP) - The recorder can be synchronised over the ethernet network via a SNTP client or synchronise other recorders via a Server
• Web Server -with the recorder connected to a LAN, all process variables, alarm and messages can be viewed from an internet browser; values are automatically refreshed

External USB Devices :

• The recorder has a front USB host ports
• This is for attaching external USB devices such as a USB key keyboard, mouse or a USB data storage key
• The keyboard and mouse can be used to navigate the recorder’s screen and enter text

Remote Viewer :

• Extends the user interface of the recorder onto the desktop PC
• Providing remote viewing of the unit launched from a web browser
• Full remote control is available as an option
• Compatible with MicrosoftTM Internet explorer 6 and higher

Security :

• Data is stored in secure encrypted files making it easy to retrieve the data dependent on process information
• Data is automatically recognized without having to remember file names
• Up to 4 levels of password protection with up to 50 different users are available
• Multiple levels of password protection and an audit trail of actions enhance the security of the data
• ESS provides extended features including entry of unique User ID’s and associated passwords, time-out of password entry, password expiration, and traceability of user actions
• ESS is compatible with the requirements of 21CFR
