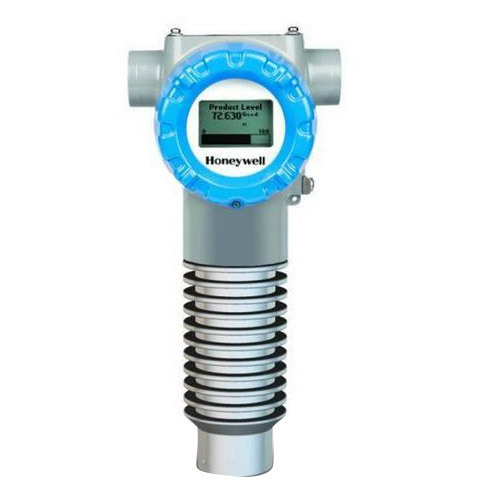

Flanged Level Transmitters

Product Description

Product Details :

Features:

• Automatic static pressure & temperature compensation
• Multiple local display capabilities
• External zero, span, & configuration capability
• Polarity insensitive electrical connections
• Comprehensive on-board diagnostic capabilities
• Integral Dual Seal design for highest safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
• World class overpressure protection
• Full compliance to SIL 2/3 requirements.
• Available with 15-year warranty

Description:

• The SmartLine transmitters are designed around a high-performance piezo-resistive sensor.
• This one sensor actually integrates multiple sensors linking process pressure measurement with on-board static pressure (DP & Level Models) and temperature compensation measurements resulting in the best total performance available.
• This level of performance allows the ST 800 to replace virtually any competitive transmitter available today.

Basic Alphanumeric LCD Display Features:

• Modular (may be added or removed in the field)
• 0, 90,180, & 270 degree position adjustments
• Configurable (HART only) and standard (Pa, KPa, MPa, KGcm2, Torr, ATM, inH2O, mH2O, bar, mbar, inH2O, inHG,
• FTH2O, mmH2O, mm HG, & psi) measurement units
• 2 Lines 16 Characters (4.13H x 1.83W mm)
• Square root output indication

Advanced Graphics LCD Display Features:

• Modular (may be added or removed in the field)
• 0, 90, 180, & 270 degree position adjustments
• Standard and custom measurement units available.
• Up to eight display screens with 3 formats are possible (Large PV with Bar Graph or PV with Trend Graph)
• Configurable screen rotation timing (1 to 30 sec)
• Display Square Root capabilities may be set separately from the 4-20mA dc output signal
• Unique "Health Watch" indication provides instant visibility of diagnostics
• Multiple language capability. (EN, GE, FR, IT, SP, RU, TR, CN, JP)

Modular Design:

• To help contain maintenance & inventory costs, all ST 800 transmitters are modular in design supporting the user's ability to replace meter bodies, add indicators or change electronic modules without affecting overall performance or approval body certifications.
• Each meter body is uniquely characterized to provide in-tolerance performance over a wide range of application variations in temperature and pressure and due to the Honeywell advanced interface, electronic modules may be swapped with any electronics module without losing in-tolerance performance characteristics.

Dual/Triple Calibration:

• STF800 models are optionally offered with multiple calibrations
• In lieu of a standard factory calibration, units can be supplied with 1, 2, or 3 customers specified calibrations
