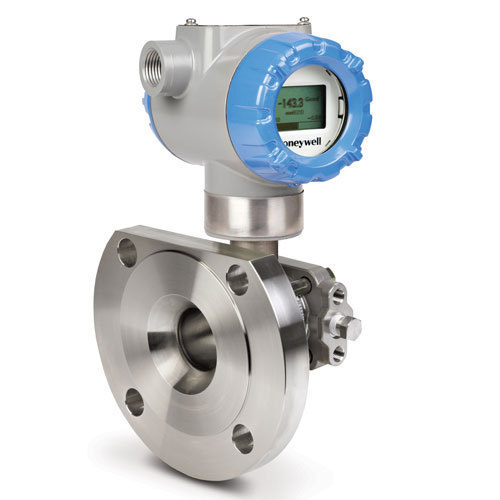

Smartline Level Transmitter

Product Description

Product Details :

Features :

• Two- wire, loop-powered 4-20 mA transmitter
• Integral dual seal design for safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.01
• Automatic temperature compensation
• Multiple local display capabilities
• Polarity insensitive electrical connections
• Comprehensive on-board diagnostic capabilities
• Full compliance to SIL 2/3 requirements as a standard.
• Modular design
• Dual compartment design
• 4-20 mA, HART and Foundation Fieldbus (future) output
• Available with 15 year warranty

Unique Out-of-the-Box, Fool Proof User Experience:

• The user experience of the SmartLine Level transmitter addresses one of the most common failure modes associated with specifying, ordering and implementing level transmitters, which is the specification of the correct level transmitter for the tank level application.
• Unique to the SmartLine Level offering is a new, online SmartLine
• Application and Validation Tool (AVT), which allows users to specify their tank level application and the options desired for their level transmitter
• The AVT intelligently guides the user through the engineering process and electronically captures and documents the choices and inputs.
• In addition to serving as engineering documentation, the AVT output also serves as input to the Honeywell order management system thus ensuring correct input of the transmitter model and the advantage of a transmitter with configuration parameters already specified to match the targeted tank application.
• Errors are eliminated and the engineering effort is preserved from start to finish.

Advanced Graphics LCD Display Features:

• Modular (may be added or removed in the field)
• 0, 90, 180, & 270 degree position adjustments
• Standard and custom measurement units available.
• Eight display screens with 3 formats are possible
• Large PV with bar graph or PV with trend graph
• Echo stem plots with Product Level and Interface Level
• Configurable screen rotation timing

System Integration:

• SmartLine communications protocols all meet the most current published standards for hart or foundation Fieldbus
• Integration with Honeywell's Experion PKS offers the following unique advantages
• Transmitter messaging
• Maintenance mode indication
• Tamper reporting
• FDM Plant Area Views with Health summaries
• The SLG series is Experion tested to provide the highest level of compatibility assurance
