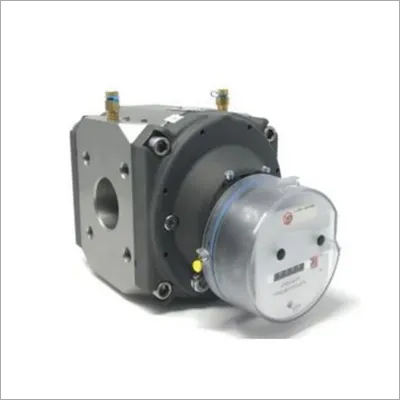

Honeywell Elster Rotary Gas Meter
3000 INR/Unit
Product Details:
- Output Pulse Outputs
- Input 24 VDC, • Temperature range -40 F to +140 F
- Power Supply 24 VDC
- Usage Gas Measurement
- Product Type Elster® Rotary Gas Meter
- Application The new Honeywell Elster Rotary Gas Meter offers a feature set that meets virtually all market applications in one simple design
- Rated Voltage 24-240VAC Volt (V)
- Click to View more
X
Honeywell Elster Rotary Gas Meter Price And Quantity
- 3000.00 - 7000.00 INR/Unit
- 3000 INR/Unit
- 1 Unit
Honeywell Elster Rotary Gas Meter Product Specifications
- 600L x 330W x 340H Millimeter (mm)
- Pulse Outputs
- 24 VDC, • Temperature range -40 F to +140 F
- 14 Kilograms (kg)
- • 4 meter
- Elster® Rotary Gas Meter
- The new Honeywell Elster Rotary Gas Meter offers a feature set that meets virtually all market applications in one simple design
- 24-240VAC Volt (V)
- 24-240VAC Volt (v)
- 1 Year
- • 3,500 to 14,000 acfh Maximum Capacity • 2”, 3” and 4” ANSI 125/150 flanged con• 3,500 to 14,000 acfh Maximum Capacity • 2”, 3” and 4” ANSI 125/150 flanged connections • High rangeability across the flow range • Low pressure drop • Differential pressure taps on inlet and outlet with Pete’s Plugs® • Non-lubricated and non-resettable index • End view, rotatable index • Heavy duty, compact designnections • High rangeability across the flow range • Low pressure drop • Differential pressure taps on inlet and outlet with Pete’s Plugs® • Non-lubricated and non-resettable index • End view, rotatable index • Heavy duty, compact design
- Gas Measurement
- 24 VDC
Honeywell Elster Rotary Gas Meter Trade Information
- 10 Unit Per Day
- 1 Week
- Contact us for information regarding our sample policy
- As per Standards
- All India
- All Standard Certifications
Product Description
Honeywell Elster has combined tried and tested product features of their RPM and IRM rotary meter product lines with new developments into a single product. The new Honeywell Elster Rotary Gas Meter offers a feature set that meets virtually all market applications in one simple design.Rotary-All-By-One, simply, all-in-one The Elster Rotary Gas meter utilizes the rotary-type positive displacement principle of operation which makes volumetric measurements by displacing finite volumes of gas. The positive displacement occurs within a cavity formed between the meters internal housing and its rotating impellers. The counter-rotating figure-impellers turn as a result of pressure drop across the meterial inlet and outlet created as downstream gas is consumed. The rotating impellers separate the flowing gas into small, finite, volumes and are counted using a mechanical index.
