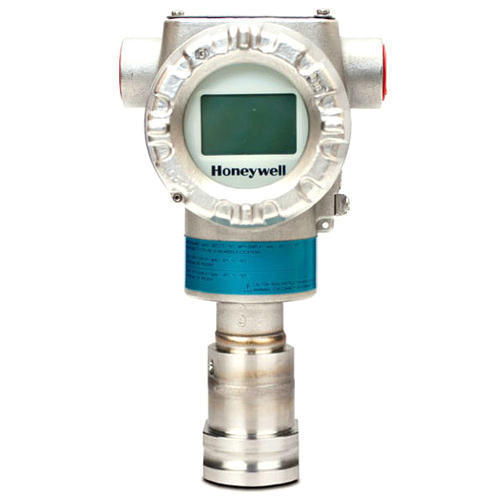

Honeywell Gauge Pressure Transmitters

Product Description

Product Details :

Best in Class Features :

• Automatic temperature compensation
• Multiple local display capabilities
• External zero, span, and configuration capability
• Polarity insensitive electrical connections
• Comprehensive on-board diagnostic capabilities
• Integral Dual Seal design for safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0.
• Modular design characteristics.
• Available with a 15-year warranty.
• Plugged Impulse Line Detection Option.
• Full compliance with SIL 2/3 requirements as a standard
• Dual/Triple Calibration Option (HART & Field bus Only)

Description :

• The SmartLine family of gauge pressure, differential pressure, and absolute pressure transmitters is designed around a high-performance piezo-resistive sensor
• This one sensor actually integrates multiple sensors linking process pressure measurement with onboard static pressure (DP Models) and temperature compensation measurements resulting in the best total performance available
• This level of performance allows the ST 800 to replace virtually any competitive transmitter available today.

Unique Indication/Display Options :

• The ST 800 modular design accommodates a basic alphanumeric LCD display
• A unique advanced graphics LCD display with many unparalleled features.

Basic Alphanumeric LCD Display Features :

• Modular (may be added or removed in the field)
• 0, 90,180, & 270 degree position adjustments
• Configurable (HART only) and standard (Pa, KPa, MPa, KGcm2, Torr, ATM, inH2O, mH2O, bar, mbar, inH2O, inHG, FTH2O, mmH2O, mm HG, & psi) measurement units
• 2 Lines 16 Characters (4.13H x 1.83W mm)
• Square root output indication

Advanced Graphics LCD Display Features :

• Modular (may be added or removed in the field)
• 0, 90, 180, & 270 degree position adjustments
• Standard and custom measurement units available.
• Up to eight display screens with 3 formats are possible (Large PV with Bar Graph or PV with Trend Graph)
• Configurable screen rotation timing (1 to 30 sec)
• Display Square Root capabilities may be set separately from the 4-20mA dc output signal
• Unique “Health Watch” indication provides instant visibility of diagnostics
• Multiple language capability. (EN, GE, FR, IT, SP, RU, TR, CN, JP)

Integral Three Button Configuration Option :

• Suitable for all electrical and environmental requirements
• SmartLine offer the ability to configure the transmitter and display via three externally accessible buttons when either display option is selected
• Zero/span capabilities are also optionally available via these buttons with or without the selection of a display option
