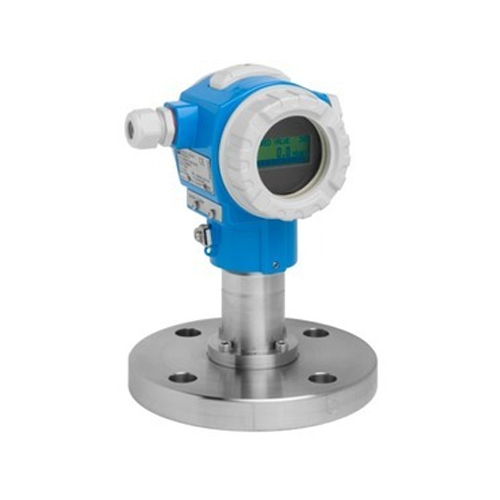

STR800 Remote Diaphragm Pressure Transmitters

Product Description

Product Details :

Best in Class Transmitter :

• Automatic static pressure & temperature compensation
• Multiple local display capabilities
• External zero, span, & configuration capability
• Polarity insensitive electrical connections
• Comprehensive on-board diagnostic capabilities
• Integral Dual Seal design for highest safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
• World class overpressure protection
• Full compliance with SIL 2/3 requirements
• Modular design characteristics
• Available with 15-year warranty

Typical Diaphragm Seal applications:

• High Process Temperatures
• Viscous or Suspended Solids
• Highly Corrosive Process Materials
• Sanitary Applications
• Applications with Hydrogen Permeation Possibilities
• Level Applications with Maintenance Intensive Wet Legs
• Applications requiring remote Transmitter Mounting
• Tank Applications with Density or Interface Measurements

Communications/Output Options:

• Honeywell Digitally Enhanced (DE)
• HART (version 7.0)
• Foundation TM Fieldbus

Description:

• The SmartLine family of gauge pressure, differential pressure, and absolute pressure transmitters is designed around a high-performance piezo-resistive sensor.
• This one sensor actually integrates multiple sensors linking process pressure measurement with on-board static pressure (DP Models)
• Temperature compensation measurements resulting in the best total performance available.
• This level of performance allows the ST 800 to replace virtually any competitive transmitter available today.

Unique Indication/Display Options:

• The ST 800 modular design accommodates a basic alphanumeric LCD display or a unique advanced graphics
• LCD display with many unparalleled features.

Advanced Graphics LCD Display:

• Modular (may be added or removed in the field)
• 0, 90, 180, & 270 degree position adjustments
• Standard and custom measurement units available.
• Up to eight display screens with 3 formats are possible (Large PV with Bar Graph or PV with Trend Graph)
• Configurable screen rotation timing
• Display Square Root capabilities may be set separately from the 4-20mA dc output signal
• Unique “Health Watch indication provides instant visibility of diagnostics
• Multiple language capability. (EN, GE, FR, IT, SP, RU, TR, CN, JP)

Integral Three Button Configuration Option:

• Suitable for all electrical and environmental requirements,
• SmartLine offers the ability to configure the transmitter and display via three externally accessible buttons when either display option is selected.
• Zero/span capabilities are also optionally available via these buttons with or without selection of a display option.
