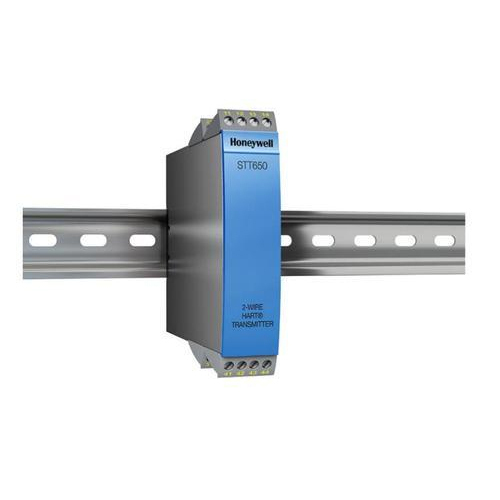

Honeywell Temperature Transmitters

Product Description

Product Details:

Reliable measurement:

• Built in Galvanic Isolation
• Differential/Averaging/Redundant/Split Range measurements
• Dual Compartment Housing
• Sensor Break detection
• Comprehensive on-board diagnostic capabilities
• Full compliance tSIL 2/3 requirements.
• Available with 15 year warranty
• Supports Namur 107* Extended Diagnostics
• Supports Namur 89 Wire break

Lower Cost of Ownership :

• Universal input
• Dual sensor option
• Multiple local display capabilities
• Modular construction
• External zero, span, & configuration capability
• Polarity insensitive loop wiring
• Digital Output Option

Communications/Output Options :

• 4-20mA dc
• Honeywell Digitally Enhanced (DE)
• HART (version 7.0)
• Foundation Fieldbu compliant tITK 6.1.1
• All transmitters are available with the above listed communications protocols

Description :

• The SmartLine Temperature transmitter is designed and manufactured tdeliver very high performance across varying ambient temperature.
• The total accuracy level of the transmitter including the ambient temperature effect in, harsh industrial environments, allows the STT850 treplace virtually any competitive transmitter available today

Unique Indication/Display Options :

• The STT 850 modular design accommodates a basic alphanumeric LCD display or a unique advanced graphics LCD display with many unparalleled features.

Basic Alphanumeric LCD Display :

• Modular (may be added or removed in the field)
• 0, 90,180, & 270 degree position adjustments
• Deg C , F, R and Kelvin measurement units
• 2 Lines 16 Characters (4.13H x 1.83W mm)
• Up t8 display screens with similar formats
• Configurable screen rotation timing (3 t30 sec)
• Auto/Manual selection for screen rotation
• Displays up t9 Datapoints - Loop PV, CJ Temperature, Sensor 1, Sensor 2, Sensor Delta, RTD 1 Resistance, RTD 2 Resistance, Loop output, Percent Loop.
• Out of Range Indication
• PV Status and critical fault indication

Advanced Graphics LCD Display :

• Modular (may be added or removed in the field)
• 0, 90, 180, & 270 degree position adjustments
• Up teight display screens with 3 formats are possible (Large PV with Bar Graph or PV with Trend Graph)
• Configurable screen rotation timing (3 t30 sec)
• Provides instant visibility for diagnostics
• Multiple language capability. (EN, GE, FR, IT, SP, RU, TR, CN & JP)

Integral Three Button Configuration Option :

• Suitable for all electrical and environmental requirements,
• SmartLine offer the ability to configure the transmitter and display via three externally accessible buttons when either display option is selected.
• Zero/span capabilities are also optionally available via these buttons with or without selection of a display option.

Hand Held Configuration:

• SmartLine transmitters feature two-way communication and configuration capability between the operator and the transmitter
• This is accomplished via Honeywell's field-rated
• Multiple Communication Configuration
