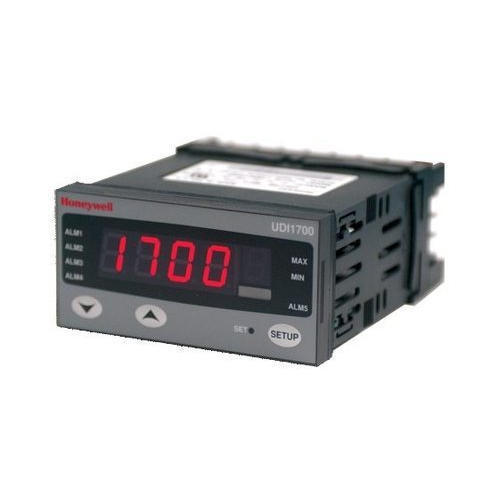

Honeywell Universal Digital Indicator

Product Description

Product Details :

Features :

• Digital Indicator
• 1 Universal Input
• Up to 5 Alarms and 5 alarm relays
• Dual Colour display (Red / Green)
• 1 Digital Input
• RS485 Modbus communication
• Nema 3 / IP65 front face protection
• Jumper free configuration
• Easily field Upgradable
• Downward compatibility with existing UDI1500 applications & wiring

A companion for the UDC1200/1700 :

• Based on the same technology as the UDC1200/1700 low price controllers
• The UDI1700 is the ideal companion of those controllers for application requiring performance in control and accurate indication

Moisture resistant front face :

• Meets NEMA 3/IP65 front face protection against dust and water

Universal Power supply and input :

• Can operate on any line voltage from 90Vac to 264Vac at 50/60Hz. A low voltage 24/48Vac/dc solution is also available.
• All input types like thermocouples, RTDs and linear DC are configurable as standard.

Flexibility & commonality :

• The option boards (alarm relay output, dual alarm relay and linear output re-transmission ) are plugin and auto detected for easy upgrade and low inventory
• Furthermore, the unit has no jumpers

Large visibility :

• A large 14 mm four digits LED display in red make the UDI1700 easy to read from a distance
• A specific digit for ^oC or ^oF is provided.

Alarm strategy :

• Up to five soft alarms are available with or without remote relay action
• The alarm types can be set on PV high or low
• Alarm 1 can be latched and requires acknowledgment from the operator

Min. and Max. indication :

• Maximum and Minimum values attained by the process variable since the last reset are stored for further analysis.

Time elapsed :

• The UDI1500 can also store the time elapsed since the alarm 1 became active.
• In combination with the above Max. and Min. features, it provides alarm information for more detailed analysis.

Transmitter Power Supply :

• Provided as an option on output 3 is 24 Volts DC power for a 2- wire transmitter

Configuration :

• Easy and full configuration with straightforward menu via the instrument front face

PV retransmission :

• The linear optional output 2 can
• Be used for PV retransmission
