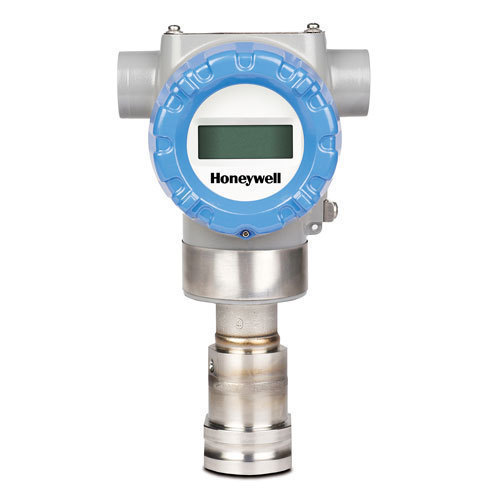

Absolute Pressure Transmitter

Product Description

Product Details :

Features :

• Automatic temperature compensation
• Response times as fast as 80ms
• Multiple local display capabilities
• External zero, span, & configuration capability
• Polarity insensitive electrical connections
• Comprehensive on-board diagnostic capabilities
• Integral Dual Seal design for safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
• Full compliance to SIL 2/3 requirements as a standard.
• Modular design characteristics
• Available with 15 year warranty
• Plugged Impulse Line Detection Option
• Dual/Triple Calibration Option (HART & Fieldbus Only)

Description :

• The Smart Line family of gauge pressure, differential pressure, and absolute pressure transmitters is designed around a high performance piezo-resistive sensor.
• This one sensor actually integrates multiple sensors linking process pressure measurement with on-board static pressure (DP Models) and temperature compensation measurements resulting in the best total performance available.
• This level of performance allows the ST 800 to replace virtually any competitive transmitter available today.

Basic Alphanumeric LCD Display :

• Modular (may be added or removed in the field)
• 0, 90,180, & 270 degree position adjustments
• Configurable (HART only) and standard (Pa, KPa, MPa, KGcm2, Torr, ATM, inH2O, mH2O, bar, mbar, inH2O, inHG, FTH2O, mmH2O, mm HG, & psi) measurement units
• 2 Lines 16 Characters (4.13H x 1.83W mm)
• Square root output indication

Advanced Graphics LCD Display :

• Modular (may be added or removed in the field)
• 0, 90, 180, & 270 degree position adjustments
• Standard and custom measurement units available.
• Up to eight display screens with 3 formats are possible (Large PV with Bar Graph or PV with Trend Graph)
• Configurable screen rotation timing (1 to 30 sec)
• Display Square Root capabilities may be set separately from the 4-20mA dc output signal
• Unique Health Watch indication provides instant visibility of diagnostics
• Multiple language capability. (EN, GE, FR, IT, SP, RU, TR, CN and JP)

Integral Three Button Configuration Option :

• Suitable for all electrical and environmental requirements,
• Smart Line offer the ability to configure the transmitter and display via three externally accessible buttons when either display option is selected.
• Zero/span capabilities are also optionally available via these buttons with or without selection of a display option.

Hand Held Configuration :

• Smart Line transmitters feature two-way communication and configuration capability between the operator and the transmitter
• This is accomplished via Honeywell  field-rated
• Multiple Communication Configurator (MCT202).
• The MCT202 is capable of field configuring DE and HART
• Devices and can also be ordered for use in intrinsically safe environments.
