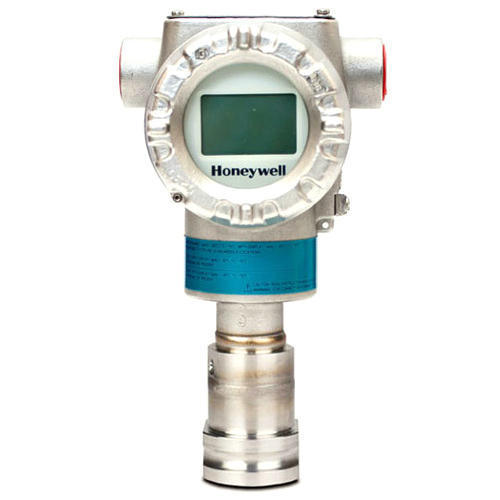

Smartline Absolute Pressure Transmitter

Product Description

Product Details :

Best in Class Features :

• Automatic temperature compensation
• Easy to use and intuitive display capabilities
• Intuitive external zero, span, & configuration capability
• On-board diagnostic capabilities
• Integral Dual Seal design for safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
• Full compliance tSIL 2/3 requirements as a standard.
• Configurable (HART only) and standard (Pa, KPa, MPa, KGcm2, Torr, ATM, inH 2 O, mH 2 O, bar, mbar, in H2O, inHG, FTH 2 O, mmH 2 O, mm HG, & psi) measurement units
• Modular (may be added or removed in the field)
• Supports HART protocol variant Write protect Indication
• Built in Basic Device Configuration through Internal or
• External Buttons-Range/Engineering Unit/Loop Test/Loop Calibration/Zero /Span Setting

Description:

• The SmartLine family pressure transmitters are designed around a high performance piezo-resistive sensor
• This one sensor actually integrates multiple sensors linking process pressure measurement with on board static pressure (DP Models) and temperature compensation measurements

Diagnostics:

• SmartLine transmitters all offer digitally accessible diagnostics which aid in providing advanced warning of possible failure events minimizing unplanned shutdowns, providing lower overall operational costs

System Integration:

• SmartLine communications protocols all meet the most current published standards for HART.
• All ST 700 units are Experion tested to provide the highest level of compatibility assurance

External two button option for zero/span setting:

• Suitable for all electrical and environmental requirements,
• SmartLine offers the ability to configure the transmitter and display, for all basic parameters, via two externally accessible buttons when a display option is selected.
• Zero/span capabilities are also optionally available via two external buttons with or without selection of the display option.

Internal Two Button Configuration Option:

• The Standard display has two buttons that can be used for
• Basic configuration such as re ranging, PV Engineering unit setting, Zero/Span settings, Loop testing and calibration functions

Hand Held Configuration:

• SmartLine transmitters feature two-way communication and configuration capability between the operator and the transmitter
• This is accomplished via Honeywell's field-rated
• Multiple Communication Configurator (MCT404).
• The MCT404 is capable of field configuring DE and HART
• Devices and can also be ordered for use in intrinsically safe environments.
• All Honeywell transmitters are designed and tested for compliance with the offered communication protocols and are designed to operate with any properly validated hand held configuration device.
