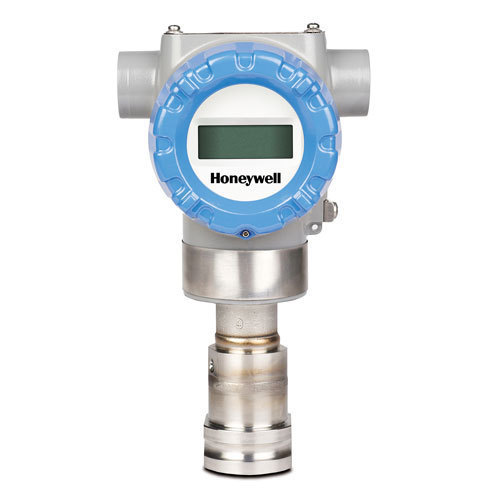

Dual Head and Inline Gauge Pressure Transmitters

Product Description

Product Details :

Features :

• Automatic temperature compensation
• Easy to use and intuitive display capabilities
• Intuitive External zero & span capability
• On-board diagnostic capabilities
• Integral Dual Seal design for safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
• Full compliance to SIL 2/3 requirements as a standard

Description :

• The SmartLine family pressure transmitters are designed around a high performance piezo-resistive sensor
• This one sensor actually integrates multiple sensors linking process pressure measurement with on-board static pressure (GP Models) and temperature compensation measurements

Stamdard LCD Display Features:

• Modular (may be added or removed in the field)
• Supports HART protocol variant
• 0, 90,180, & 270 degree position adjustments
• Configurable (HART only) and standard (Pa, KPa, MPa, KGcm2, Torr, ATM, inH2O, mH2O, bar, mbar, inH2O, inHG, FTH2O, mmH2O, mm HG, & psi) measurement units
• 2 Lines 6 digits PV (9.95H x 4.20W mm) 8 Characters
• Square root output indication (√) and Write protect Indication
• Built in Basic Device Configuration through Internal or
• External Buttons - Range/Engineering Unit/Loop Test /Loop Calibration/Zero /Span Setting

System Integration:

• SmartLine communications protocols all meet the most current published standards for HART.
• All ST 700 units are Experion tested to provide the highest level of compatibility assurance

Hand Held Configuration:

• SmartLine transmitters feature two-way communication and configuration capability between the operator and the transmitter.
• This is accomplished via Honeywell's field-rated
• Multiple Communication Configurator (MCT404).
• The MCT404 is capable of field configuring HART Devices and can also be ordered for use in intrinsically safe environments.
• All Honeywell transmitters are designed and tested for compliance with the offered communication protocols and are designed to operate with any properly validated hand held configuration device.

Modular Design:

• To help contain maintenance & inventory costs, all ST 700 transmitters are modular in design supporting the user's ability to replace meter bodies, standard displays or electronic modules without affecting overall performance.
• Each meter body is uniquely characterized to provide intolerance performance over a wide range of application variations in temperature and pressure.
